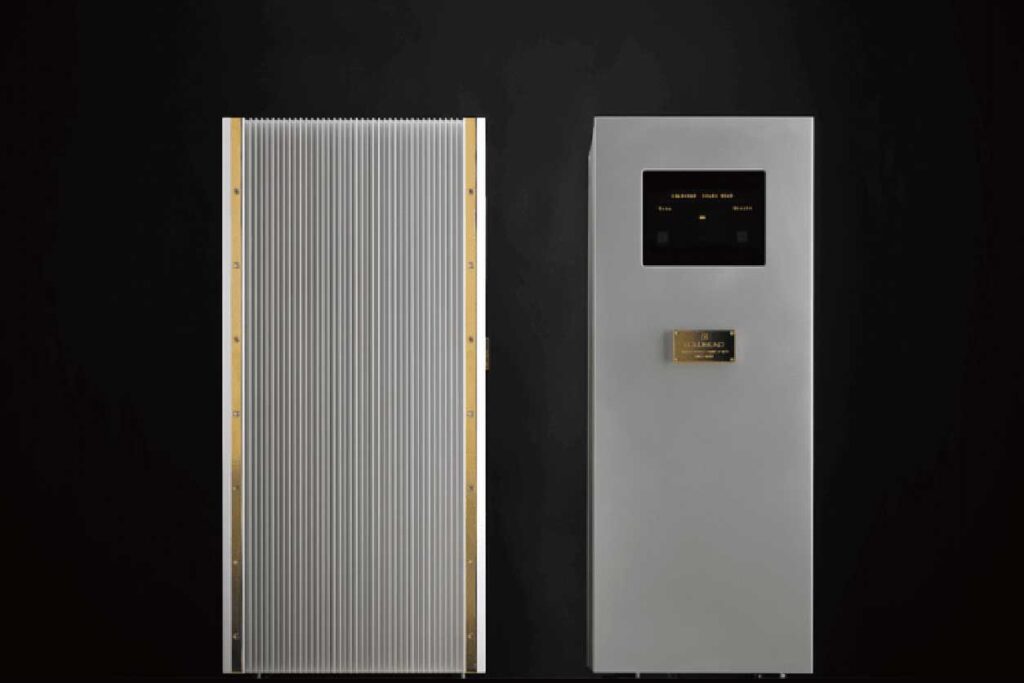

極致、強大和雄偉，新的 Telos 5500 NextGen 是 Telos 5000+ 的繼承者，是最高技術水平的工程實力。 該單元的重大改進代表了音頻放大領域的重要一步，它們將塑造下一代高端放大器，無論是單獨的還是內置的。

OUTPUT POWER

Maximum power (IEC60065): 1000 Wrms on 8 Ω / 1 % THD.

DAMPING FACTOR

600 at 1 kHz / 8 Ω.

DISTORTION

IMD (SMPTE), unloaded: < 0.01 %.
THD+N, unloaded: < 0.005 % from 20 Hz to 20 kHz at 30 Vrms output.

OUTPUT FLOOR NOISE

Analog input terminated with RCA Shorting Caps, unloaded: < 3 μV from 20 Hz to 20 kHz.

GAIN

35 dB, +/- 9 dB (adjustable in steps of 3 dB for each input).

INPUT

Max level before clipping:

Analog input: 2 Vrms.
Digital input: 0 dBFS.

OUTPUT

Max level before clipping:

1 % THD, unloaded: 300 Vpp.

REAR PANEL

Power cord: universal socket 3 lugs, 16 A.
Main fuses.
AC black GND binding post (with bridge connection).
Green-yellow AC earth binding post (with bridge connection).
2 x output binding posts (red & black).
1 x output speaker Lemo 4B type connector.
Analog input RCA unbalanced connector.
Analog input XLR balanced connector.
Digital input and output RCA connectors.
RS232 command connector.

RATED POWER CONSUMPTION

IEC 60065, 1/8 Output Power at 8 Ω: 640 W.

POWER SUPPLY

Nominal line voltage: 115 V or 230 V.
Input voltage range: +/- 15 %.

DYNAMIC RANGE

22 kHz measurement bandwidth (flat), true RMS unloaded: 116 dB.

DIMENSIONS & WEIGHT

39 W x 47 D x 93 H (cm).
260 kg.

WARRANTY

3 years parts and labor.
