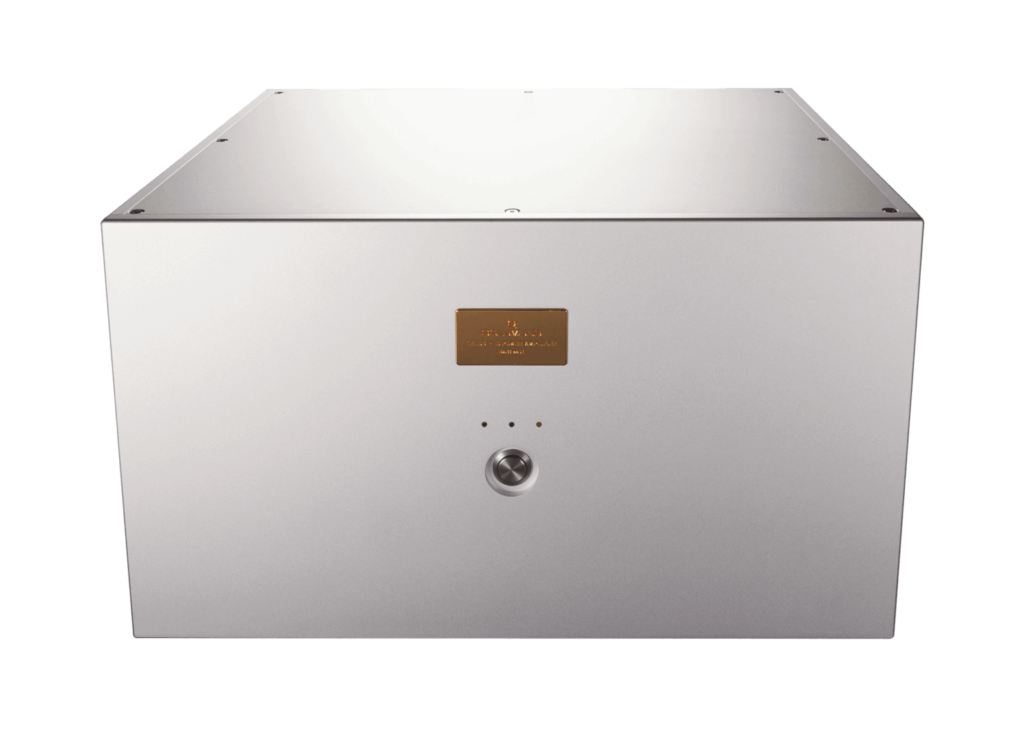

MONO POWER AMPLIFIER
在希臘語中，Telos 的意思是目的或目標。 Telos 440 功率放大器的目的是將輸入信號的功率電平提高到不合理的水平，輕鬆驅動任何無源揚聲器。 與所有 Goldmund 放大器一樣，Telos 440 的性能遠超傳統音頻帶寬，這要歸功於其超線性橫向 MOSFET 晶體管。 後部提供數字和模擬輸入，與僅支持模擬的功率放大器相比，它擴大了可以連接的源範圍。 來源包括 Goldmund 聲學處理器或前置放大器。 我們的經銷商可以根據您音響系統中所有組件的規格為您提供最佳音響系統設置的建議。
規格
OUTPUT POWER
Maximum power (IEC60065): 285 Wrms on 8 Ω / 1 % THD.
DAMPING FACTOR
400 at 1 kHz / 8 Ω.
DISTORTION
IMD (SMPTE), unloaded: < 0.05 %.
THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output.
OUTPUT NOISE FLOOR
Analog input terminated with RCA Shorting Caps, unloaded: < 20 μV from 20 Hz to 20 kHz.
GAIN
35 dB
OUTPUT
Max level before clipping:
1 % THD, unloaded: 158 Vpp.
REAR PANEL
Power cord: universal socket 3 lugs.
Main fuse (8 A slow-blow for 115 V and 230 V).
1x pairs binding post (red & black).
Analog RCA input (unbalanced connector).
Digital S/PDIF input and output RCA connectors.
Switch between analog or digital input.
Switch right or left channel selection from the S/PDIF input.
RS232 command connector for programming.
Analog input: 1 Vrms.
Digital input: -6 dBFS.
INPUT
Max level before clipping:
Analog input: 1 Vrms.
Digital input: -6.6 dBFS.
RATED POWER CONSUMPTION
IEC 60065, 1/8 Output Power at 8 Ω: 150 W.
POWER SUPPLY
Nominal line voltage: 115 V or 230 V.
Input voltage range: +/- 15 %.
DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 100 dB.
DIMENSIONS & WEIGHT
44 W x 26.8 H x 40.5 D x (cm).
24 kg.
WARRANTY
3 years parts and labor.
