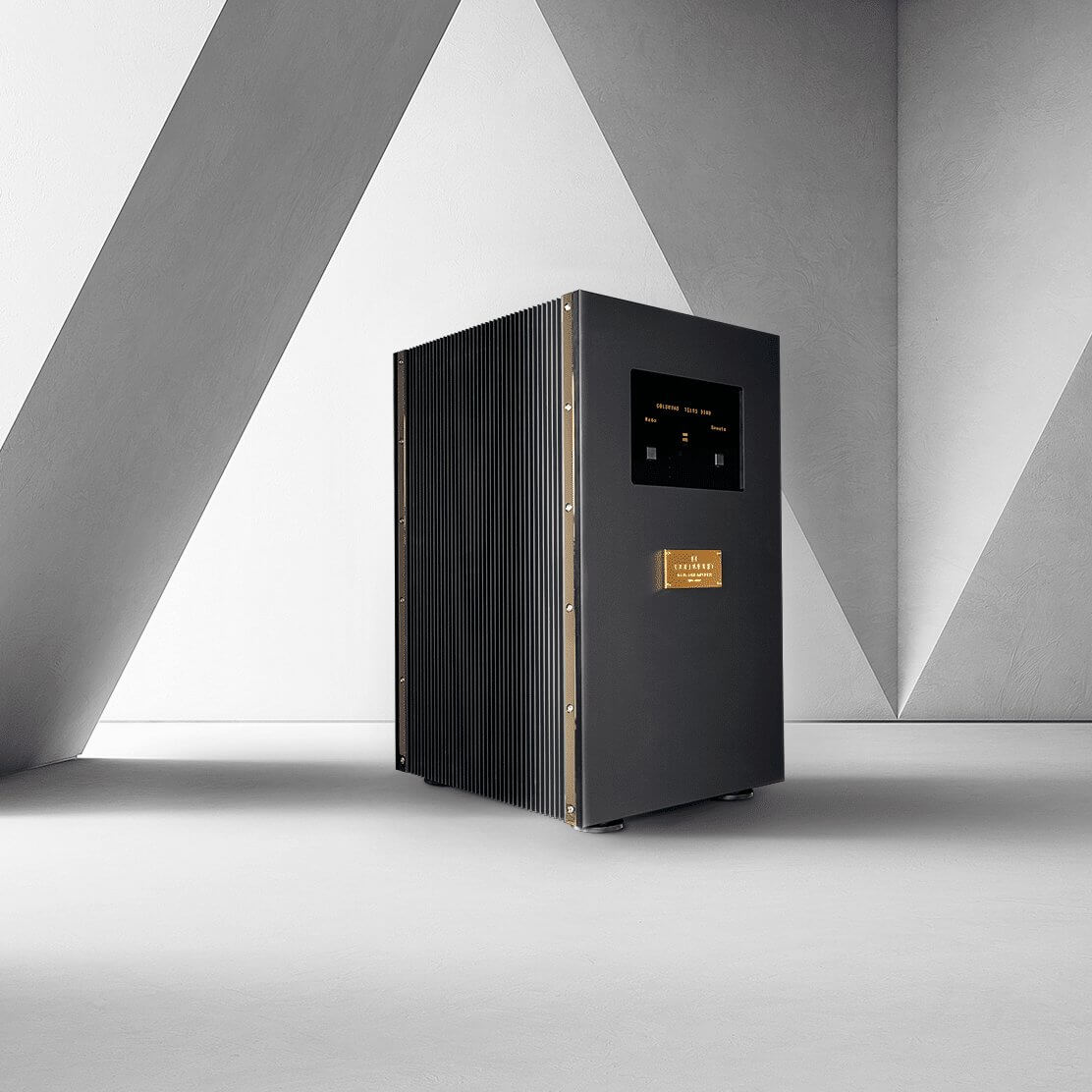

TELOS 3300 NEXTGEN
MONO POWER AMPLIFIER
音頻放大
Telos 3000 NextGen 承襲了宏偉的 Telos 5500 NextGen，在音頻方面則是有更好的表現。
規格
OUTPUT POWER
Maximum power (IEC60065): 700 Wrms on 8 Ω / 1 % THD.
DAMPING FACTOR
350 at 1 kHz / 8 Ω.
DISTORTION
IMDIMD (SMPTE), unloaded: < 0.01 %.
THD+N, unloaded: < 0.005 % from 20 Hz to 20 kHz at 30 Vrms output.
OUTPUT NOISE FLOOR
Analog input terminated with RCA Shorting Caps, unloaded: < 5 μV from 20 Hz to 20 kHz.
GAIN
35 dB, +/- 9 dB (adjustable in steps of 3 dB for each input).
INPUT
Max level before clipping:
Analog input: 2 Vrms.
Digital input: 0 dBFS.
OUTPUT
Max level before clipping:
1 % THD, unloaded: 300 Vpp.
REAR PANEL
Power cord: universal socket 3 lugs, 16 A.
Main fuses
AC black GND binding post (with bridge connection).
Green-yellow AC earth binding post (with bridge connection).
2 x output binding posts (red & black).
1 x output speaker Lemo 4B type connector.
Analog input RCA unbalanced connector.
Analog input XLR balanced connector.
Digital input and output RCA connectors.
RS232 command connector.
RATED POWER CONSUMPTION
IEC 60065, 1/8 Output Power at 8 Ω: 500 W.
POWER SUPPLY
Nominal line voltage: 115 V or 230 V.
Input voltage range: +/- 15 %.
DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 116 dB.
DIMENSIONS & WEIGHT
39 W x 48 D x 69 H (cm).
165 kg.
WARRANTY
3 years parts and labor.
MOSFET 晶體管
由於其超線性橫向 MOSFET 晶體管，所有 Goldmund 放大器都遠遠超出了傳統的音頻帶寬。 線性電源封裝了高性能超低噪聲環形變壓器、超高性能二極管整流器和超大優質濾波電容器。
無源揚聲器系統
這些組件參與將電源插座的交流電轉換為非常穩定的連續電壓，並使連續電流盡可能保持線性。 Telos 3300 Nextgen 有兩種飾面：銀色啞光灰色和黑色啞光，以金色細節突出。 無源揚聲器的完美放大器。
