MIMESIS 37S NEXTGEN
PREAMPLIFIER
立體聲前置放大
Goldmund Mimesis 37S NextGen 是一款高端模擬立體聲前置放大器。 它使用多個並行前置放大器級降低噪聲和失真的能力簡直令人難以置信。 Mimesis 37S NextGen 採用完全雙單聲道結構，帶有處理器驅動的鏈接衰減器，使用單獨的電源單元實現最佳降噪效果，並使用 4 個單獨的電路進行 2 個連續的功率調節階段。
音頻電路質量
Mimesis 37S NextGen 提供 7 路輸入——5 路非平衡和 2 路平衡模擬輸入——和 3 路輸出——每通道 1 路非平衡磁帶環路和 1 路平衡和 1 路非平衡模擬輸出。 它還可以防止接地迴路和交流線路掉線或中斷將觸發和自動靜音。 Mimesis 37S NextGen 是模擬前置放大器的參考，並且在未來幾年將在音頻電路質量和聲音方面保持不相上下。
規格
INPUTS
Input impedance: 39 kOhms.
Maximum input level (balanced): 9.6 Vrms.
Maximum input level (unbalanced): 4.8 Vrms.
OUTPUTS
Output impedance: 50 Ohms.
Maximum output level (balanced): 19.2 Vrms.
Maximum output level (unbalanced): 9.6 Vrms.
FREQUENCY RESPONSE
These values for any level to maximum output level.
+/- 0 dB, 20 – 20 kHz.
+/- 3 dB, 0.2 – 900 kHz.
GROUP DELAY
Propagation delay <300 ns stable with frequency from DC to 200 kHz.
SPEED
Slew rate of the amplification stages: 200 V/us.
Rise time: < 400 ns.
CROSSTALK
Separation: > 105 dB between channels (20 Hz – 20 kHz).
DISTORTION
With 1 Vrms output level, 80 KHz measurement bandwidth, 600 ohms termination impedance.
THD unbalanced input to unbalanced output: 0.002 % flat with frequency.
THD balanced input to balanced out: 0.001 % flat with frequency.
IMD unbalanced input to unbalanced output: 0.002 %.
IMD balanced input to balanced out: 0.001 %.
NOISE
Signal-to-noise ratio on line input: > 120 dB (0.01 Hz – 10 Mhz).
Weighted ASA A: > 130 dB.
OPERATING TEMPERATURE
Room temperature: -30 to +40 degrees Celsius.
Internal temperature: +45 to +70 degrees Celsius.
POWER
Nominal line voltage: 115 or 230 V.
Input voltage range: +/-15 %.
Maximum power consumption: 70 W.
GROUNDING
Separated ground and earth signal.
SAFETY FEATURES
Automatic switching to MUTING if the AC line drops or is interrupted.
Automatic protection against tape loops.

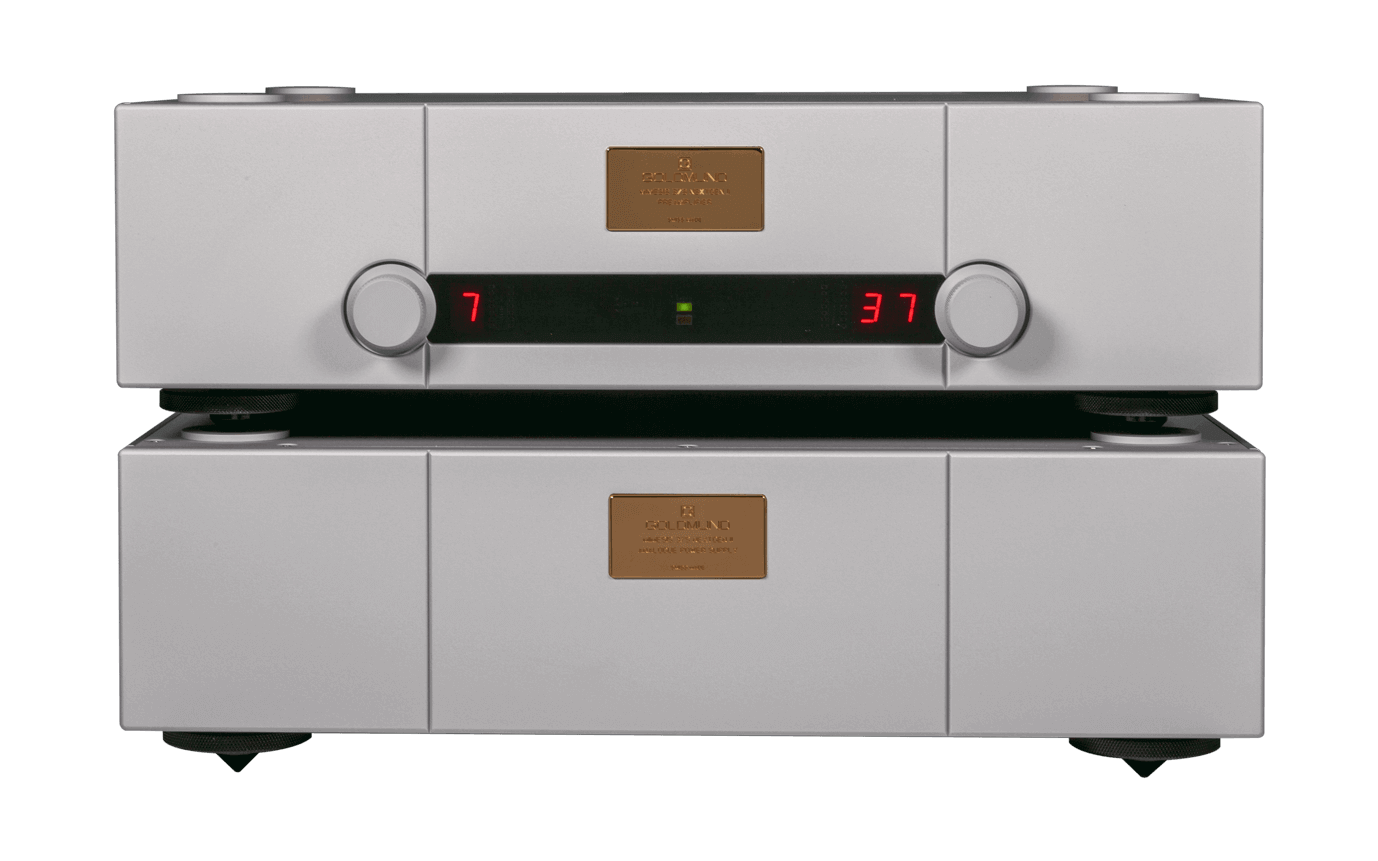

FRONT PANEL
VOLUME control.
BALANCE control.

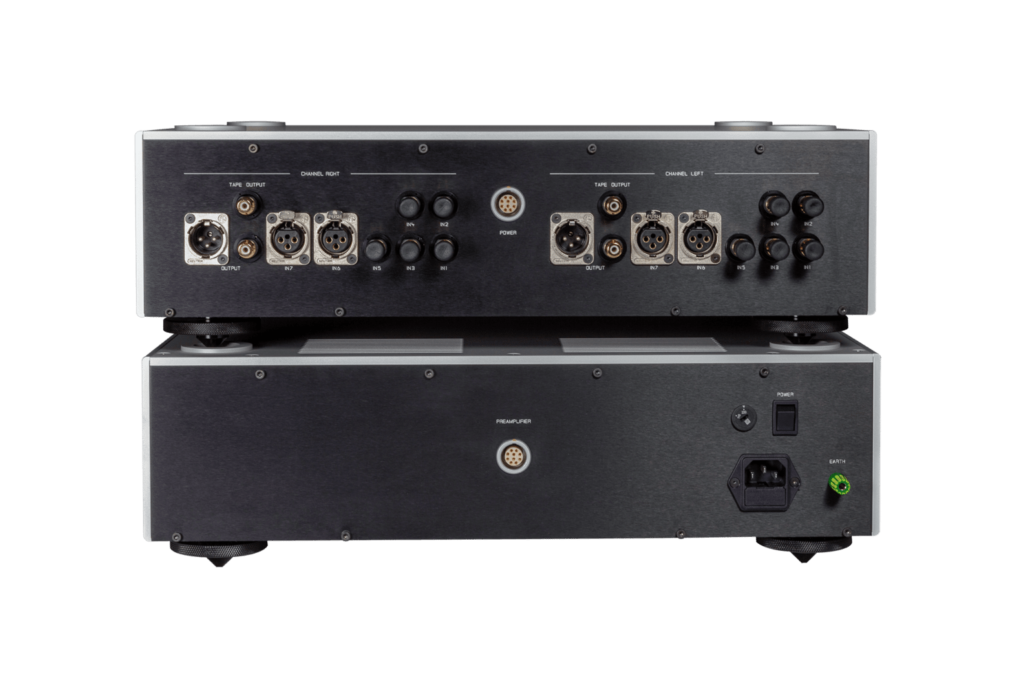

REAR PANEL
Power connector.
5x pairs of RCA input connectors (right & left).
2x pairs of XLR input connectors (right & left).
1x pair of RCA output connectors (right & left).
1x pair of RCA output connectors (right & left).
1x pair of XLR output connectors (right & left).
1x pair of RCA Tape output connectors (right & left).
POWER SUPPLY CONTROLS
Power cord socket (3 lugs).
Main fuse (2.5 A slow-blow).
Voltage selector 115/230 V.
Earthing post (yellow-green).
SIZE & WEIGHT
PREAMPLIFIER:
44 W x 13.5 H x 40 D (cm), without power cord.
9 kg.
POWER SUPPLY:
44 W x 13.5 H x 38.5 D (cm), without power cord.
12 kg.
WARRANTY
3 years, parts and labor (except drivers).
