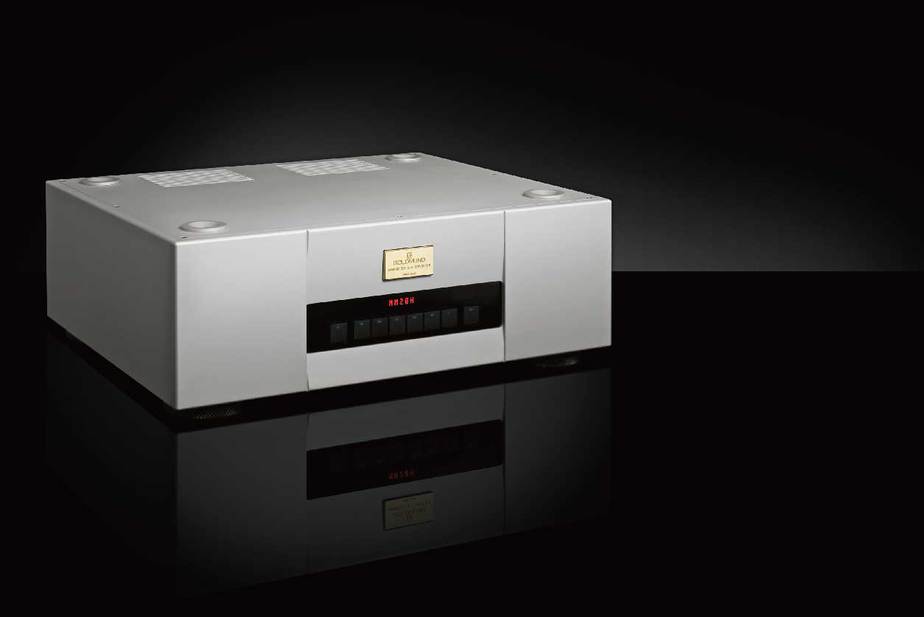

STEREO D/A CONVERTER
更深沉的聲音
Mimesis 20H NextGen 包括最新的 Alize 7 D/A 電路，該電路最初是為標誌性的 Telos 5000 開發的，它是最負盛名和技術最先進的 Goldmund 立體聲 DA 轉換器。 Alize 7 電路是一個階梯式 D/A，具有 >130 dB 的擴展動態範圍和完美的時間校準校正。由於每個通道並行有多個 D/A，因此聲音效果是更深沉的靜音，顯著改善了微動力學和壯觀的透明度。
更純淨的聲音
這一結果也是由於集成電源為 Alize 電路供電。它的靈感來自於 Mimesis 系列中使用的新設計的電源，並確保為設備提供完美純淨的電源。 Mimesis 20H NextGen 專用於超高端音響系統，是所有認真的發燒友客戶在他們的聽音室中尋找最原始聲音的參考 2 通道 D/A 轉換器。 Goldmund 建議將 Mimesis 20H Nextgen 與最新的模擬前置放大器一起使用：Mimesis 22H NextGen。 Mimesis 20H NextGen D/A 轉換器提供 6 個輸入，包括具有 DSD 文件讀取功能的 USB 和平衡 XLR 電路。
規格

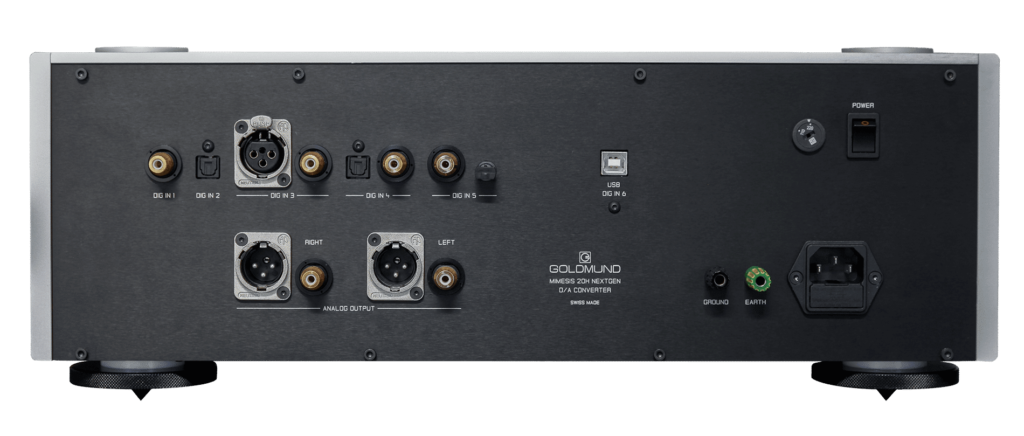

DIGITAL INPUTS
In 1: S/PDIF coaxial (RCA 75 Ohms).
In 2: Toslink Optical.
In 3: S/PDIF coaxial (RCA 75 Ohms) and AES/EBU balanced (XLR 110 Ohms).
In 4: S/PDIF coaxial (RCA 75 Ohms) and Toslink Optical.
In 5: S/PDIF coaxial (RCA 75 Ohms) and ATT Optical.
In 6: USB AUDIO (384 kHz/Bit depth up to 32 compatible DSD over PCM).
Any inputs from 1 to 5 can receive stereo audio encoded signal up to 192 kHz/Bit.
ANALOG OUTPUTS
1 x RCA and 1 x XLR balanced (left).
1 x RCA and 1 x XLR balanced (right).
D/A CONVERTER CIRCUIT
2 x Goldmund ultra-linear phase proprietary circuitry enhanced Alize 7 with enhanced dynamics.
Bandwidth: 20 Hz-20 kHz -0.2 dB typical.
Typical non-linearity: below 1 dB at -100 dB.
Typical phase error between channels: < 0.5 degrees.
Output voltage: 2 Vrms unbalanced, 4 Vrms balanced.
THD < 0,001 % (0 dBFS, 80 KHz bandwidth measurement).

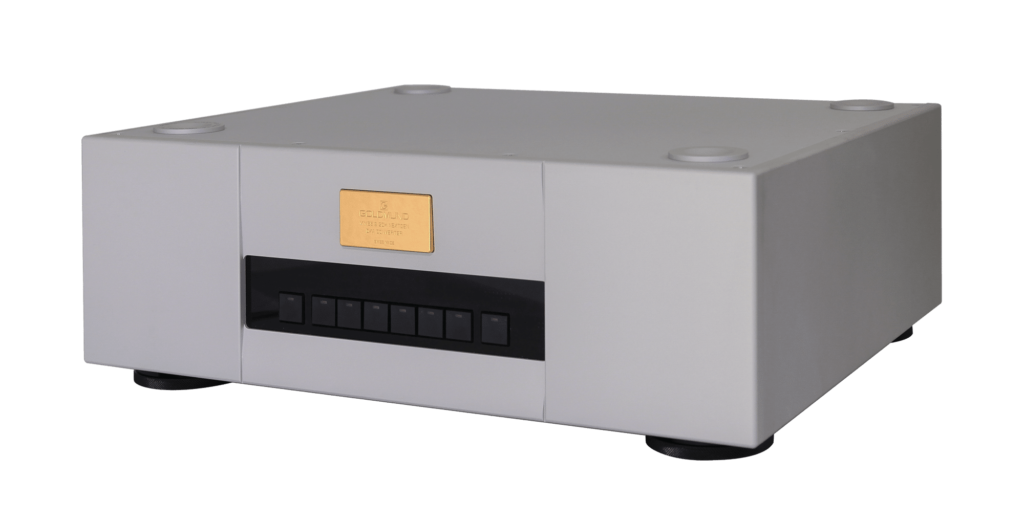

FRONT PANEL
6 x button Input channel selection (Ch1-Ch6) with separate LED signal locking (green).
1 x Mute button with LED signal standby (orange).
1 x standby button with LED signal standby (orange).
Separate LED display (orange).
POWER
3 Separate power transformers (25 W in use, 2 W in standby):
– 1 x transformer that is always under voltage;
– 2 x transformers that are cut off for energy savings when the unit is on standby mode.
Nominal AC line voltage: 115V / 230V.
Input voltage range: +/- 15%.Fuse 1.6 A.
SIZE & WEIGHT
44 W x 16 H x 37 D (cm).
20 kg.
WARRANTY
3 years, parts and labor.
