Atlas

Power Amplifier

ATLAS 放大器能夠驅動幾乎任何高品質揚聲器。創新的混合設計包含雙極輸出級、雙極驅動級和真空管輸入增益級。它們是唯一具有零反饋的混合放大器,對於保持諧波完整性、空氣、空間和相干性至關重要。 Atlas 為您提供全範圍或高通輸入的選擇。這種獨特的內置濾波器非常適合帶有有源低音揚聲器的揚聲器,例如 Vandersteen,或使用外置有源低音炮的音頻和家庭影院系統。 Saturn 系列的設計主題體現在專業的全鋁機箱結構和精心的電源設計上。

Altas Stereo 提供三個版本:Standard、Signature 或 Eclipse。

Atlas Mono 有兩個版本:Signature 或 Eclipse。

*Atlas Stereo 可以出廠升級到 Signature 版,所有 Atlas 單元都可以出廠升級到 Eclipse 版。


規格

Atlas Stereo

Power Output: 200wpc channel into 8, 400wpc into 4
Input Sensitivity: 60mV (1 watt), 2.3V (full power)Input Impedance: 470K
Output Impedance: .25 at 1kHz
Signal to noise: 120dB
Bandwidth at full power: 4 – 150kHz
Rated THD at full power: <1%
Power consumption: 100 watts at idle
Dimensions: 18″w x 8″h x 19″d
Weight: 70 lbs
Finish: black or silver

Atlas Mono
Power Output: 300wpc channel into 8, 600wpc into 4
Input Sensitivity: 60mV (1 watt), 3.1V (full power)Input Impedance: 470K
Output Impedance: .25 at 1kHz
Signal to noise: 120dB
Bandwidth at full power: 4 – 150kHz
Rated THD at full power: <1%
Power consumption: 100 watts at idle
Dimensions: 18″w x 8″h x 19″d
Weight: 70 lbs
Finish: black or silver
Warranty: 3 years, non-transferable


Atlas Signature

Atlas Stereo Signature 使用與標準 Atlas Stereo 相同的電路,但這些電路僅使用最高質量的部件實現。Mono Signature 版本將整個電源專用於一個通道,增加了空間、驅動器和維度。Atlas 的標準版本使用非常高質量的 Rel-Caps 作為級間耦合電容器,而 Signature 則使用 Peter Moncrief 的 Stealth 電容器對這些電容器進行了升級,成本是後者的 10 倍以上。這些提供更多細節和信息,同時保持相同的屢獲殊榮的色調平衡。大電流輸出級電源電容翻倍,增加低音驅動力和紮實度。接線柱接線升級為專業的發燒友 14 AWG,進一步提高了分辨率。

*Atlas Mono 僅在 Signature 版本中可用。Atlas Stereo 可以在出廠時升級到 Signature 版本。

Atlas Eclipse

最新版本的 Atlas 包括使用新的奇異電容器、電氣升級,包括超級匹配的輸出設備和分佈式節點技術;先進的機械底盤隔離;和復雜的電信號接地。作為一種選擇,可以使用美觀的新型拋光鋁製外殼,它既更堅固又具有更好的阻尼性能。

第一階段: Atlas Eclipse Stereo 採用 Stealthcap™ 電容器,由奇異的新導體、介電材料和復合樹脂製成,可顯著減少反射,增強焦點和黑色背景的清晰度。

第二階段: Atlas Eclipse Stereo 的輸出級採用 Super Matched Pair 輸出設備,將某些輸出級失真分量降低多達 40dB。在 Atlas 的每個版本中,每個雙極輸出設備(每個通道 16 個)都通過銅母線設計供電,與標準電路板走線相比,從根本上降低了阻抗。在 Eclipse 版本中,在每個輸出設備處添加了分佈式節點薄膜電容器,進一步降低了阻抗,從而增加了電流容量並提高了瞬態能力。

第三階段:關鍵電源組件:高壓變壓器、高壓扼流圈和驅動扼流圈使用專門設計的隔離支架與底盤分離。這大大減少了引入底盤的機械振動量。

第四階段:由於變壓器不再與機箱多點接觸,採用單點系統將變壓器外殼接地,進一步降低交流噪聲。大電流部分的電源接線,在標準和簽名版本中已經是堅固的 14 規格,升級到相當於 12 AWG 多導體發燒友接線。

第五階段(可選):用高剛性細木工技術用螺栓固定在一起的機加工鋁件取代了箱體……它們作為一個整體。黑色的面板經過拋光處理,呈現出美麗的反光光澤。在銀色中,它們以華麗的啞光質地完成。


精選照片

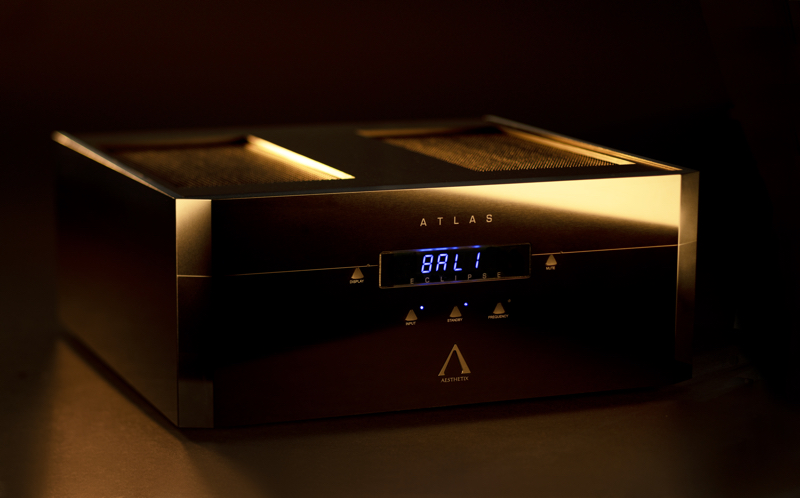

Saturn 系列:Aesthetix Atlas Eclipse 前視圖(黑色)

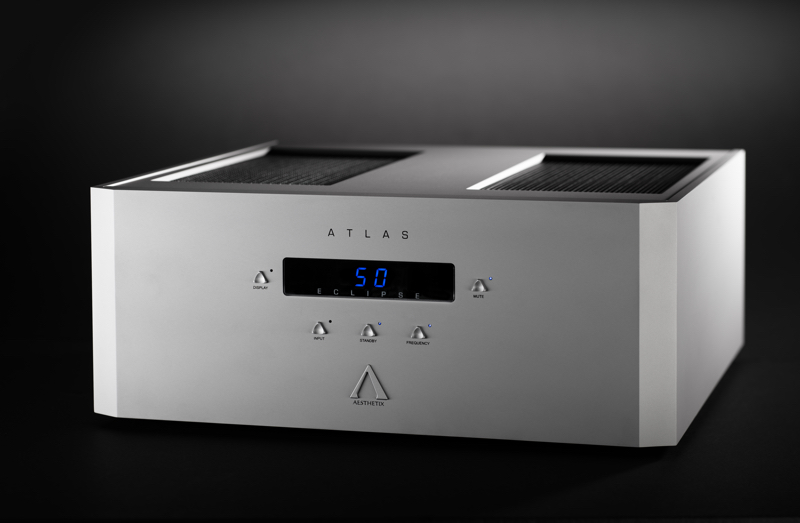

Saturn 系列:Aesthetix Atlas Eclipse 前視圖(銀色)

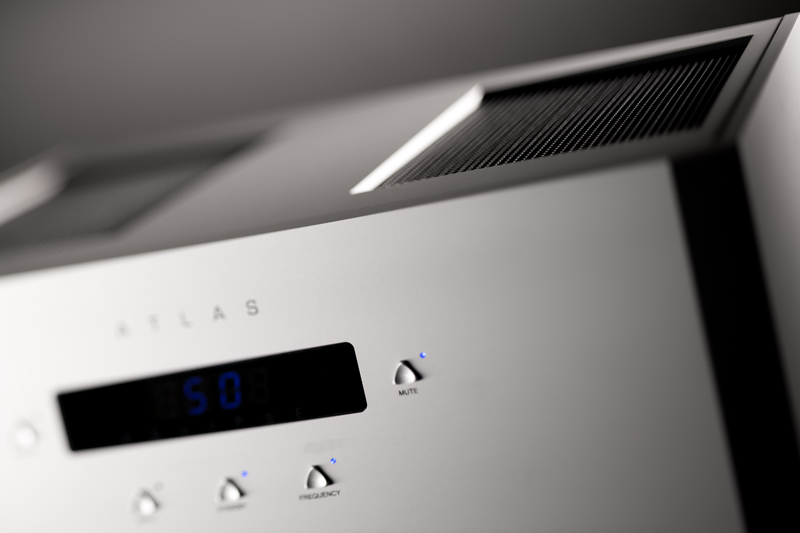

Saturn 系列:Aesthetix Atlas Eclipse 正面細節(銀色)

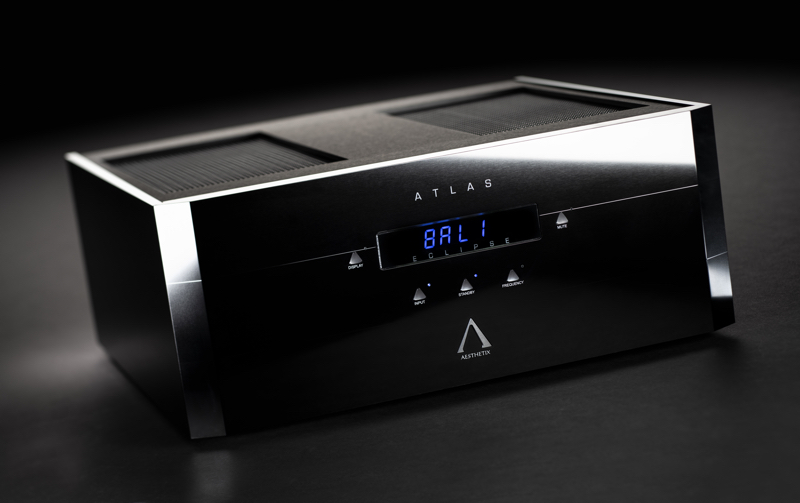

Saturn 系列:Aesthetix Atlas Eclipse 前視圖(黑色)
Saturn 系列:Aesthetix Atlas 立體聲放大器後視圖

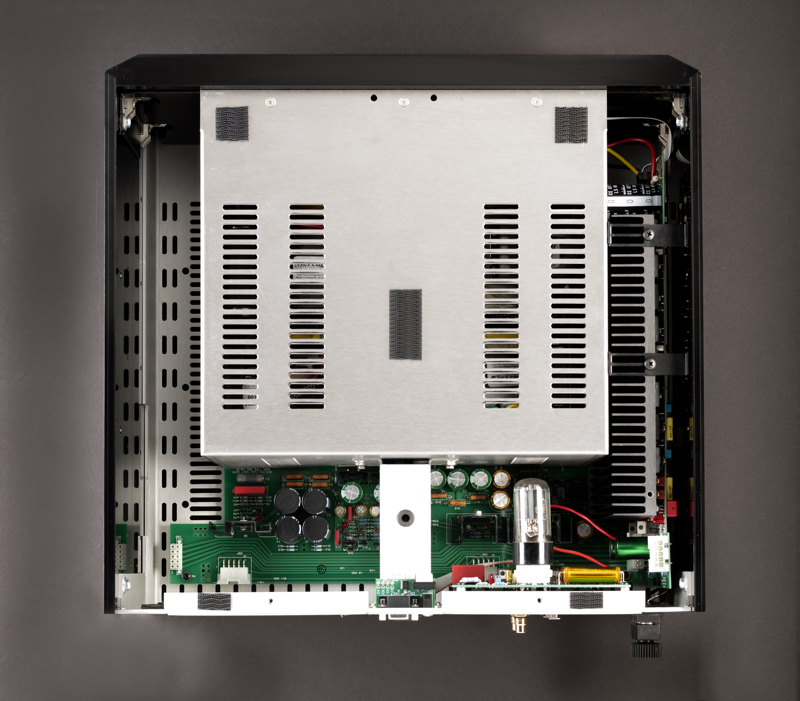

Saturn 系列:Aesthetix Atlas Eclipse 頂視圖(黑色)

評論

The Aesthetix Atlas Eclipse Mono is a powerful amplifier that delivers like few others on the promise of hybrid technology… seemingly unlimited power with a pristine transparency… truly deserving to be called Product of the Year.” -The Absolute Sound (January 2021), read award

 The Atlas lived up to its name… Its transparency is pristine — not like a very clear window, but like no window at all between the listener and the music… You know you are on to something good when a new piece of gear prompts you to pull out more and more of your favorite music… Over time it became apparent that these amplifiers do not impose any particular sonic signature upon the music and, far more often than not, reveal air, space, and detail lost on lesser gear.” -Don Saltzman, The Absolute Sound (May/June 2020), read review
